Mobile work platform with safety cage
Specifications
Information
- Platform 1 (rigid): Platform length (PFL): 3,660 mm
- Platform 1 (rigid): Platform width (PFB): 850 mm
- Platform 1 (rigid): Platform height (PFH): 1,800 mm
- Platform 1 (rigid): Decking: Steel grating R13
- Platform 2 (height-adjustable): Platform length (PFL): 3,660 mm
- Platform 2 (height-adjustable): Platform width (PFB): 850 mm
- Platform 2 (height-adjustable): Platform height max. (PFHmax): 5,000 mm
- Platform 2 (height-adjustable): Platform height min. (PFHmin): 3,900 mm
- Platform 2 (height-adjustable): Adjustment range (V): 1,100 mm
- Platform 2 (height-adjustable): Decking: Steel grating R13
- Safety cage: Length (SKL): 3,660 mm
- Safety cage: Width (SKB): approx. 2,000 mm
- Safety cage: Height (LH): approx. 600 mm
- Safety cage: Long side designed to be pluggable; can be clamped with 2 telescopic support legs
- Working platforms can be used individually or together
- Stairs: Platform length 1 (PFL1): 830 mm
- Stairs: Platform length 2 (PFL2): 630 mm
- Stairs: Platform width (PFB): 650 mm
- Stairs: Platform height top (PFH1): 1,800 mm
- Stairs: Platform height top (PFH2): 5,000 mm
- Stairs: Step width (SB): 600 mm
- Stairs: Step depth (ST): 240 mm
- Stairs: Projection (A): approx. 4,200 mm
- Stairs: Inclination (W): 60 °
- Stairs: Covering: Steel grating R12
- Surface load: 1.50 kN/m²
- Total load: 500 kg
Client's Request and Task
Our client, a public transport operator, faced the challenge of optimizing maintenance and repair work on different types of trams. The focus of the customer's needs was on ergonomic and safe work design for the maintenance staff and compliance with all relevant legal regulations and standards. Additionally, high mobility within the workshops was required, with the work platform needing to be adaptable to various tram models.
- Ergonomic and safe work environment for employees on a mobile work platform
- Stable, reliable, and standard-compliant execution
- Flexible use with different types of trams
- Use of corrosion-resistant aluminum alloys
- Compliance with all relevant regulations, guidelines, standards, laws, and recommendations
Our Solution

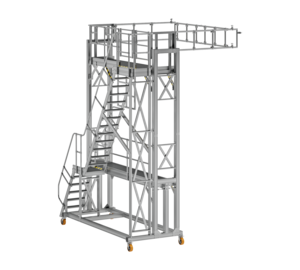

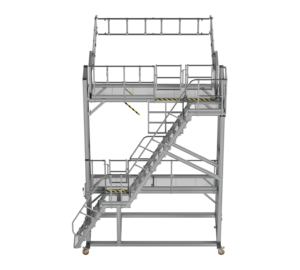

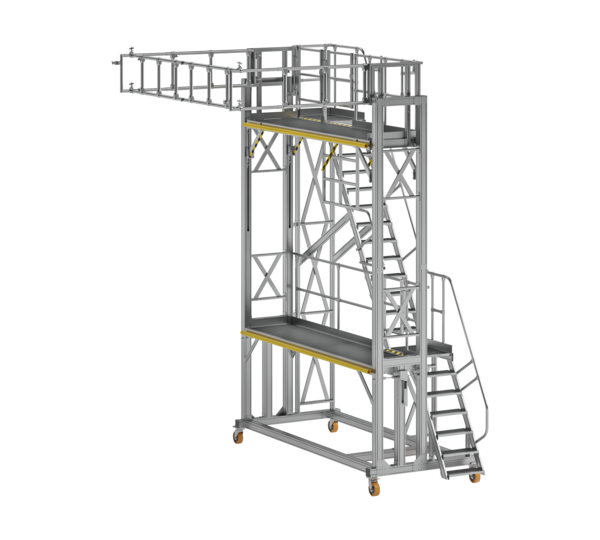

Modular Work Platform with Safety Basket
To meet the client's requirements, we developed a mobile work platform with an integrated safety basket. The construction consists of two support frames that carry a lower rigid and an upper height-adjustable platform. The platforms are designed for high load capacity and offer ample space for tools and materials.
Flexible Adjustment and Ergonomics
The upper platform can be continuously adjusted using a threaded spindle and hand crank to accommodate the varying heights of the trams. The stable, two-flight staircase with a handrail allows for safe ascent. A foldable side safety basket provides additional fall protection and allows two platforms to be connected to extend the work area.
Safety and Mobility
The mobile frame is equipped with four robust casters, each with locking brakes, ensuring safe positioning of the platform. Self-closing safety doors and rigid railings enhance work safety. Rubber strips on the side facing the product serve as impact protection and prevent damage to the trams.
Technical Specifications
The platforms are made of non-slip steel grating and are designed to accommodate a surface load of 1.50 kN/m² and a total load of 500 kg. The height-adjustable platform offers an adjustment range of 1100 mm, allowing for ergonomic working at various heights.
Conclusion
The mobile work platform with a safety basket meets all the requirements set by the customer for flexibility, safety, and ergonomics. It is specifically designed for the maintenance and repair of trams and supports efficient and standard-compliant work. The use of high-quality materials and thoughtful construction ensures the product's long life and reliability.
