Order no.: 063183

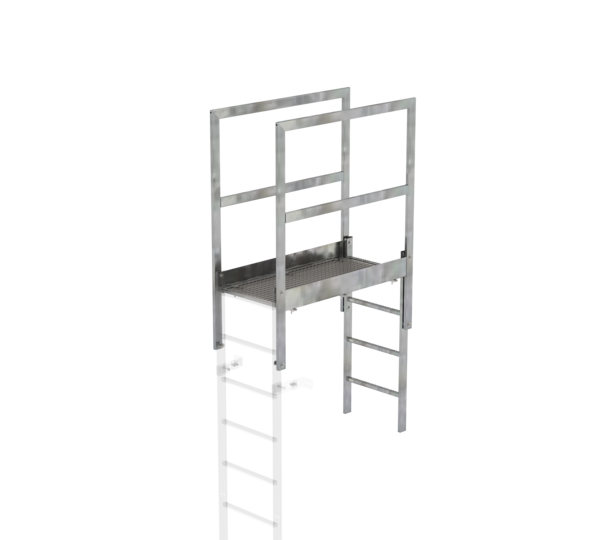

Roof parapet bridge galvanised steel special length
€ 1,732.00
RRP without VAT
Specifications
Length
1.2 m
Step width
470 mm
Step/Rung height
29 mm
Step depth
30 mm
Step/Rung distance
280 mm
Number of steps/rungs
4 rungs
Ladder length
1.22 m
Ladder length incl. exit side-rail
2.21 m
Entry/Exit
Roof parapet bridge
Non-slip class
R10
Material
Galvanised steel
Passage width
536 mm
Clear length
1.08 m
Business division
MUNK Günzburger Steigtechnik
Order no.
063183
Information
- With grating
- Passage width 536 mm, special widths on request
- Recommendation for the bottom end at the exit point: Adjustable wall anchors or foot plates
- Descent ladder: Length 1,220 mm, Length to be cut to size by client
- Longer delivery times thanks to order-related production
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Grating: 1 x
- Garde-corps: 2 x
- Descent ladder: 1 x
- Assembly kit: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Roof parapet bridge galvanised steel special length 1080 mm clear length | Roof parapet bridge galvanised steel special length 1880 mm clear length | Roof parapet bridge galvanised steel special length 1280 mm clear length | Roof parapet bridge galvanised steel special length 1480 mm clear length |
|---|---|---|---|---|
| Length | 1.2 m | 2 m | 1.4 m | 1.6 m |
| Step width | 470 mm | 470 mm | - | - |
| Step/Rung height | 29 mm | 29 mm | - | - |
| Step depth | 30 mm | 30 mm | - | - |
| Step/Rung distance | 280 mm | 280 mm | - | - |
| Number of steps/rungs | 4 rungs | 4 | - | - |
| Ladder length | 1.22 m | 1.22 m | 1.22 m | 1.22 m |
| Ladder length incl. exit side-rail | 2.21 m | 2.21 m | 2.21 m | 2.21 m |
| Entry/Exit | Roof parapet bridge | Roof parapet bridge | Roof parapet bridge | Roof parapet bridge |
| Non-slip class | R10 | R10 | R10 | R10 |
| Material | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel |
| Passage width | 536 mm | 536 mm | 536 mm | 536 mm |
| Clear length | 1.08 m | 1.88 m | 1.28 m | 1.48 m |
| Transport dimensions | 2250 x 2000 x 300 mm, 81.7 kg | 2220 x 1400 x 590 mm, 62.8 kg | 2220 x 1600 x 590 mm, 59.8 kg | - |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 063183 | 063187 | 063184 | 063185 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
