Specifications
Number of steps/rungs
3 steps
Business division
MUNK Günzburger Steigtechnik
Transport dimensions
1413 x 830 x 150 mm, 8.5 kg
Order no.
600963
Information
- Improves the accessibility and user-friendliness of bridging steps
- Easy to assemble and install
- Manufactured in accordance with the DIN EN ISO 14122 series of European standards
- Not suitable for residential use according to DIN 18065
- Second handrail required for 60° stairs in accordance with DIN EN ISO 14122-3
- Handrail and railing on one side, Ø 40 mm, with bolted connecting elements as standard (height: 1,100 mm) as standard
- Note: The standard version includes connecting parts of galvanised steel, which are suitable for indoor use. At a surcharge, they can also be made of stainless steel, which is recommended for outdoor use
- This product is made to order and cannot be returned
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users

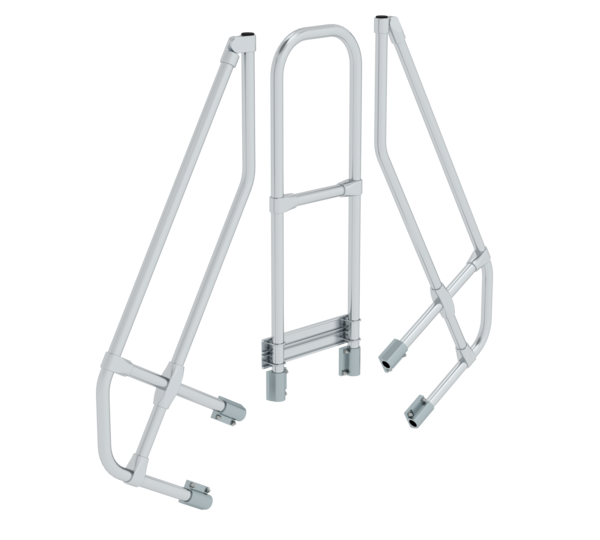

Scope of supply
- Stair module: 2 x
- Platform: 1 x
- Handrail (enclosed separately): 2 x
- Garde-corps: 1 x
- Installation material: 1 x
- Assembly instructions and instructions for use: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Second handrail for bridging steps 60° 3 steps | Second handrail for bridging steps 60° 4 steps | Second handrail for bridging steps 60° 5 steps | Second handrail for bridging steps 60° 6 steps | Second handrail for bridging steps 60° 7 steps | Second handrail for bridging steps 60° 8 steps | Second handrail for bridging steps 60° 9 steps | Second handrail for bridging steps 60° 10 steps | Second handrail for bridging steps 60° 11 steps |
|---|---|---|---|---|---|---|---|---|---|
| Number of steps/rungs | 3 steps | 4 steps | 5 steps | 6 steps | 7 steps | 8 steps | 9 steps | 10 steps | 11 steps |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Transport dimensions | 1413 x 830 x 150 mm, 8.5 kg | 1650 x 830 x 150 mm, 9 kg | 1910 x 830 x 150 mm, 11 kg | 2220 x 830 x 150 mm, 11.5 kg | 2480 x 830 x 150 mm, 12.1 kg | 2750 x 830 x 150 mm, 12.5 kg | 3010 x 830 x 150 mm, 13 kg | 3280 x 830 x 150 mm, 15.3 kg | 3540 x 830 x 150 mm, 15.8 kg |
| Order no. | 600963 | 600964 | 600965 | 600966 | 600967 | 600968 | 600969 | 600970 | 600971 |
| Buy online |
Configurator
Configuring, enquiring about and ordering individual products could not be easier with our product configurator for stairs, bridging steps and mobile platform stairs. Simply enter your required dimensions and versions step by step, and a rotating 3D model will appear in real time. To save your configuration and request a quotation requires a login which will be set up for you by our Sales team.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
