Order no.: 510100

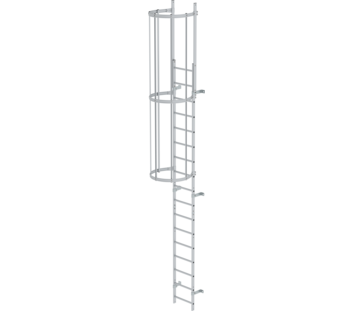

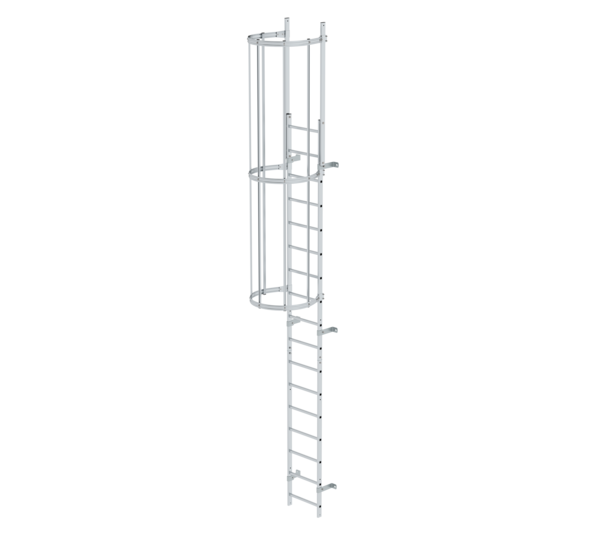

Single-flight vertical ladder with back protection bright aluminium
€ 1,069.00
RRP without VAT
Specifications
Climbing height
4.76 m
Ladder length incl. exit side-rail
5.96 m
Outer width
520 mm
Depth of side-rails
60 mm
Max. load capacity
150 kg
Wall distance
200 mm
Design type
Single-flight
Material
Aluminium
Business division
MUNK Günzburger Steigtechnik
Order no.
510100
Information

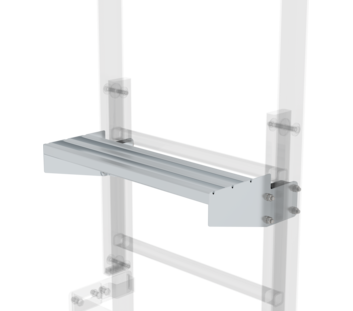

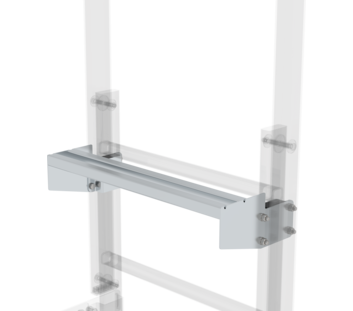

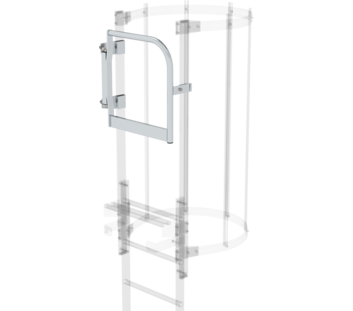

- Single-flight vertical ladders according to DIN 18799-1/-3, DIN 14094-1 and DIN EN ISO 14122-4: Additional components, such as exit steps, railing and safety doors, may be required depending on the exit situation on site. These components are not included as a complete kit and need to be ordered separately.
- Irrespective of the climbing height:
- Either back protection or safety railing can be used as fall protection (combination not permitted as the rescue of persons is then hindered by the back protection)
- The need for an occupational medical examination for suitability for working at height (e.g. G 41) depends on the risk assessment (e.g. total climbing height, type of safety railing) of the respective vertical ladder systems
- Proof of the load-bearing capacity of the underlying surface must be provided for each construction project by a responsible stability expert
- The vertical overlap of successive ladder flights must be at least 1,680 mm
- At unsecured exit points, railings attached to both sides of the vertical ladder or led into the exit level are required

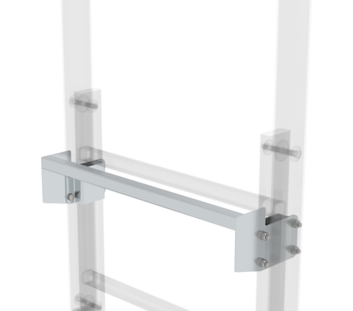

- Gap at exit step must not be larger than 75 mm
- Step-on dimension: Distance from entry level to the first rung 100–400 mm
- When exiting forwards, the uppermost rung must be at the height of the exit side-rail
- Vertical ladders with fall protection require at least 800 × 800 mm clear space available in front of the ladder when climbing off it. These dimensions must also be observed for new installations in the existing system
- These dimensions should also be complied with for new installations in the existing system
- The clearances between the vertical ladder system and the railing must not exceed 180 mm
- The connection to the fall protection must be established and released from a secured standing position
- For safe gripping of the side-rails, the clearance to adjacent parts around the side-rails must be at least 75 mm (except for components forming part of the vertical ladder system)
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply

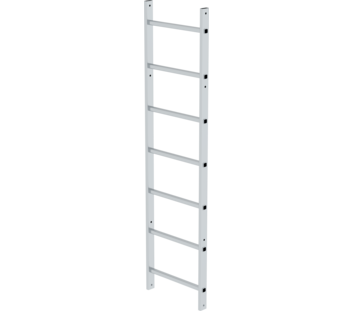

- 062264 - Ladder section bright aluminium: 1 x

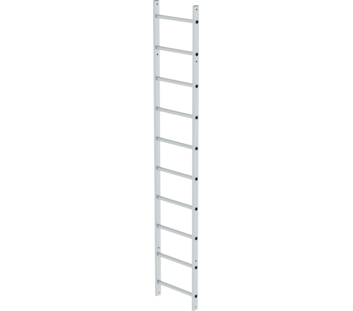

- 062265 - Ladder section bright aluminium: 1 x

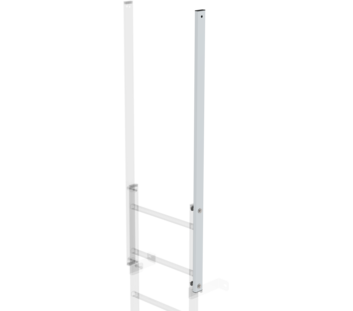

- 062243 - Exit side-rail straight: 2 x

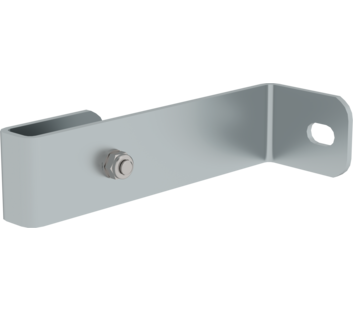

- 063249 - Rigid wall anchor 200 mm, galvanised steel: 6 x

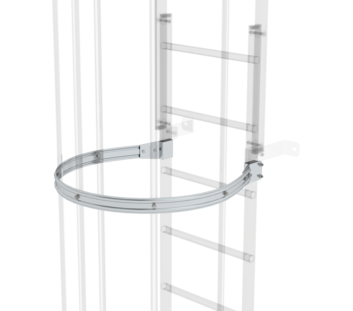

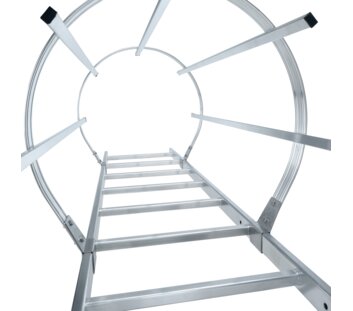

- 062234 - Ø 700 mm back protection hoop: 3 x
- 062235 - Back protection brace for fixed ladders: 5 x
- 061236 - Vertical ladder connector 200 mm: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Single-flight vertical ladder with back protection bright aluminium 5.96m | Single-flight vertical ladder with back protection bright aluminium 6.80m | Single-flight vertical ladder with back protection bright aluminium 7.64m | Single-flight vertical ladder with back protection bright aluminium 8.48m | Single-flight vertical ladder with back protection bright aluminium 9.60m | Single-flight vertical ladder with back protection bright aluminium 10.72m |
|---|---|---|---|---|---|---|
| Climbing height | 4.76 m | 5.6 m | 6.44 m | 7.28 m | 8.4 m | 9.52 m |
| Ladder length incl. exit side-rail | 5.96 m | 6.8 m | 7.64 m | 8.48 m | 9.6 m | 10.72 m |
| Outer width | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm | 520 mm |
| Depth of side-rails | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm | 60 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg | 150 kg |
| Wall distance | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm | 200 mm |
| Design type | Single-flight | Single-flight | Single-flight | Single-flight | Single-flight | Single-flight |
| Material | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium | Aluminium |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 510100 | 510105 | 510110 | 510115 | 510120 | 510125 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
