Order no.: 063263

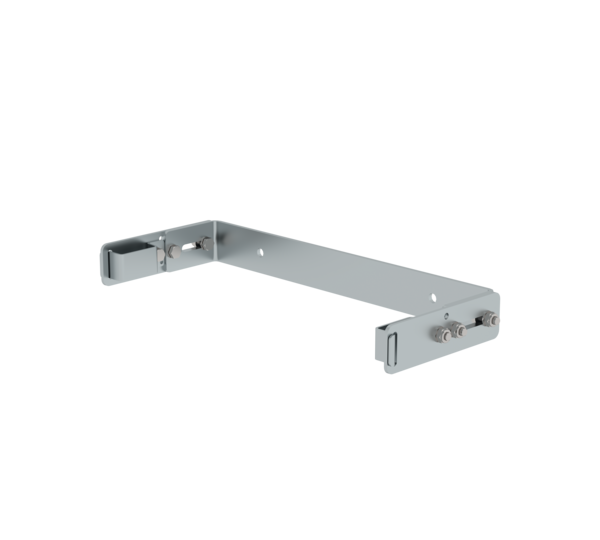

Wall anchor U-bracket, adjustable, 165–205 mm, galvanised steel
€ 121.00
RRP without VAT
Specifications
Wall anchor
U-bracket
Wall distance min.
165 mm
Wall distance max.
205 mm
Adjustment range
40 mm
Material
Galvanised steel
Transport dimensions
555 x 210 x 60 mm, 3.5 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
063263
Information
- Ideal for vertical ladders
- Very easy to install thanks to user-friendly design
- Adjustable wall anchor
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Wall anchor: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Wall anchor U-bracket, adjustable, 165–205 mm, galvanised steel 165–205 mm, galvanised steel | Wall anchor U-bracket, adjustable, 200–275 mm, galvanised steel 200–275 mm, galvanised steel | Wall anchor U-bracket, adjustable, 275–375mm, galvanised steel | Wall anchor U-bracket, adjustable, 375–500 mm, galvanised steel | Wall anchor U-bracket, adjustable, 550–750 mm, galvanised steel | Wall anchor U-bracket, adjustable, 750–950 mm, galvanised steel |
|---|---|---|---|---|---|---|
| Wall anchor | U-bracket | U-bracket | U-bracket | U-bracket | U-bracket | U-bracket |
| Wall distance min. | 165 mm | 200 mm | 275 mm | 375 mm | 550 mm | 750 mm |
| Wall distance max. | 205 mm | 275 mm | 375 mm | 500 mm | 750 mm | 950 mm |
| Adjustment range | 40 mm | 75 mm | 100 mm | 125 mm | 125 mm | 125 mm |
| Material | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel | Galvanised steel |
| Transport dimensions | 555 x 210 x 60 mm, 3.5 kg | 560 x 243 x 60 mm, 3.5 kg | 560 x 310 x 60 mm, 4.5 kg | 560 x 410 x 120 mm, 6.5 kg | 670 x 530 x 70 mm, 8.5 kg | 820 x 530 x 70 mm, 9 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 063263 | 063260 | 063267 | 063275 | 063279 | 063280 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
