Order no.
: 115200

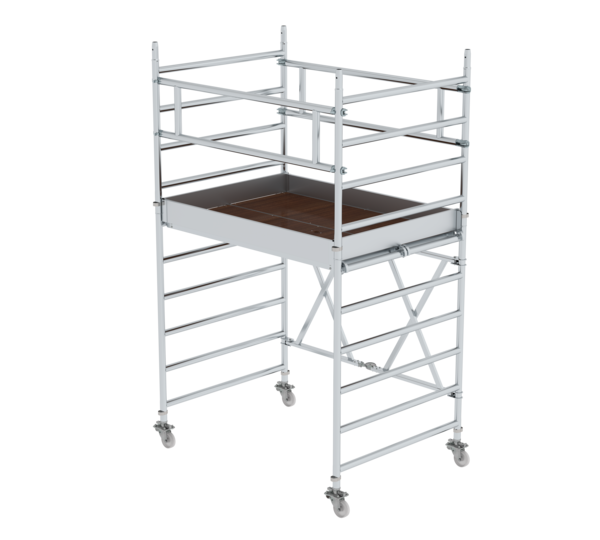

Folding scaffolding 1.35 x 1.80 m
€ 3,494.00
RRP without VAT
Specifications
Working height
4.08 m
Scaffolding height
3.35 m
Platform height
2.08 m
Platform width
1.35 m
Platform length
1.8 m
Load capacity
1.5 kN/m2
Weight
102 kg
Indoor use, central installation
possible & allowed
Indoor use, lateral installation
not possible
Outdoor use, central installation
possible & allowed
Outdoor use, lateral installation
not possible
Ballasting of scaffolding, indoor, central installation
0 kg
Ballasting of scaffolding, outdoor, central installation
80 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
115200
Price
€ 3,494.00
Information
- Mobile scaffolding made of sturdy round aluminium tubing with welded frame parts
- Folding frame made of rectangular tube side-rails with self-locking hinges
- Space-saving transport and storage
- Four Ø 125 mm swivel castors with centric load application and spindles
- Slip-resistant platform for secure standing
- Aluminium toe boards and railing frames with integrated knee board as safety railing (from platform height of 2.8 m and higher)
- Simple setup and removal without tools
- Different platform widths available (0.75 / 1.35 m)
- Platform lengths of 2.45 m and 3.0 m upon request
- Working heights up to 13.8 m
- GS-tested as per DIN EN 1004
- Load class/scaffolding group 2: 1.5 kN/m²
- Corporate certification: ISO 9001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- 027972 - Folding frame unit, 1.35 m: 1 x
- 027955 - Railing lengthwise: 2 x
- 027931 - Platform with trapdoor: 1 x
- 027932 - Platform without flap: 1 x
- 027911 - Toe board front side: 2 x
- 027943 - Toe board long side: 2 x
- 027973 - Swivel castor with spindle: 4 x
- Instructions for assembly and use EN 1004-2 - de: 1 x
- 027902 - Push-fit frame, 1.35 m.: 2 x
Safety. Made in Germany.
Comparison table
| Product name | Folding scaffolding 1.35 x 1.80 m Platform height 2.08 m | Folding scaffolding 1.35 x 1.80 m Platform height 3.20 m | Folding scaffolding 1.35 x 1.80 m Platform height 4.04 m |
|---|---|---|---|
| Working height | 4.08 m | 5.2 m | 6.04 m |
| Scaffolding height | 3.35 m | 4.47 m | 5.31 m |
| Platform height | 2.08 m | 3.2 m | 4.04 m |
| Platform width | 1.35 m | 1.35 m | 1.35 m |
| Platform length | 1.8 m | 1.8 m | 1.8 m |
| Load capacity | 1.5 kN/m2 | 1.5 kN/m2 | 1.5 kN/m2 |
| Weight | 102 kg | 121 kg | 165 kg |
| Indoor use, central installation | possible & allowed | possible & allowed | possible & allowed |
| Indoor use, lateral installation | not possible | not possible | possible & allowed |
| Outdoor use, central installation | possible & allowed | possible & allowed | possible & allowed |
| Outdoor use, lateral installation | not possible | not possible | possible & allowed |
| Ballasting of scaffolding, indoor, central installation | 0 kg | 0 kg | 20 kg |
| Ballasting of scaffolding, indoor, lateral installation | - | - | 20 kg |
| Ballasting of scaffolding, outdoor, central installation | 80 kg | 200 kg | 290 kg |
| Ballasting of scaffolding, outdoor, lateral installation | - | - | 120 kg |
| Predecessor product | - | - | 115238 |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 115200 | 115228 | 115239 |
| Price | € 3,494.00 | € 4,222.00 | € 5,425.00 |
| Buy online |
Note on BG BAU Occupational Safety Subsidy
Upgrade your scaffolding with a Safety Railing (SR) to ensure reliable protection at work thanks to an integrated edge protection system! Retrofitting reduces fall risks and qualifies for funding through the BG BAU Occupational Safety subsidy: Up to 50% of the purchase costs (max. €100 per measure) can be reimbursed.
✔ Suitable for this product: Compatible SR safety railings provide effective edge protection and are easy to retrofit.
All BG BAU members can benefit from this funding. The aim is to prevent workplace accidents, especially on construction sites, and to improve ergonomics. Detailed information from BG BAU is available at: www.bgbau.de/service/angebote/arbeitsschutzpraemien
A quick guide to the funding programme and an overview of our eligible products can be found on our website under Know-how.
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
