Order no.: 062264

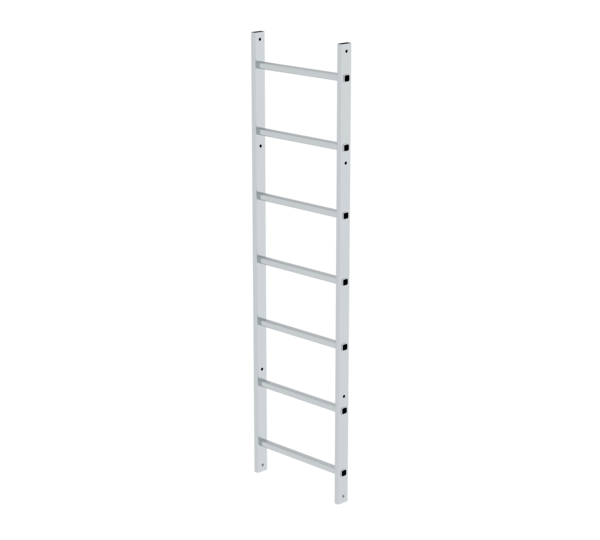

Ladder section bright aluminium
€ 130.00
RRP without VAT
Specifications
Length
1.96 m
Outer width
520 mm
Step width
470 mm
Step/Rung height
30 mm
Step depth
30 mm
Step/Rung distance
280 mm
Number of steps/rungs
7 rungs
Depth of side-rails
60 mm
Max. load capacity
150 kg
Material
Aluminium
Transport dimensions
1955 x 525 x 60 mm, 3.5 kg
Business division
MUNK Günzburger Steigtechnik
Order no.
062264
Spare part for article no.
510100
Spare part for article no.
510125
Information
- Ladder width 520 mm
- Rung distance: 280 mm
- Side-rail dimensions: 60 x 25 mm
- Dimension of rungs: 30 x 30 mm
- Rung design: with anodised aluminium and bright aluminium grooved rungs, with galvanised steel and stainless steel perforated rungs
- Corporate certification: ISO 9001
- Corporate certification: ISO 14001
- Corporate certification: EN 1090
- Corporate certification: EcoVadis
- RoHS
- REACH
- The MUNK Group complies with a Code of Conduct
- The Supply Chain Act does not apply due to our size
- The materials used are listed in the technical specification
- Resource-saving production: own photovoltaic systems
- Energy-efficient consumption during production: LED lighting
- Repairability, durability and quality: 15-year warranty on series products made in Germany
- Recyclability: Our products are mostly made of aluminium, steel or wood and can be fed directly into the recycling process.
- Socially acceptable working conditions in production: fair wages, gender equality
- Economical and recyclable packaging: no use of polystyrene, predominantly use of wood and cardboard, small amounts of plastic
- No health hazards for the users
Scope of supply
- Ladder section: 1 x
Safety. Made in Germany.
Comparison table
| Product name | Ladder section bright aluminium 7 rungs | Ladder section bright aluminium 10 rungs | Ladder section bright aluminium 13 rungs Bright aluminium |
|---|---|---|---|
| Length | 1.96 m | 2.8 m | 3.64 m |
| Outer width | 520 mm | 520 mm | 520 mm |
| Step width | 470 mm | 470 mm | 470 mm |
| Step/Rung height | 30 mm | 30 mm | 30 mm |
| Step depth | 30 mm | 30 mm | 30 mm |
| Step/Rung distance | 280 mm | 280 mm | 280 mm |
| Number of steps/rungs | 7 rungs | 10 rungs | 13 rungs |
| Depth of side-rails | 60 mm | 60 mm | 60 mm |
| Max. load capacity | 150 kg | 150 kg | 150 kg |
| Material | Aluminium | Aluminium | Aluminium |
| Transport dimensions | 1955 x 525 x 60 mm, 3.5 kg | 2795 x 525 x 60 mm, 5.5 kg | 3635 x 525 x 60 mm, 7 kg |
| Business division | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik | MUNK Günzburger Steigtechnik |
| Order no. | 062264 | 062265 | 062266 |
| Buy online |
Technical changes and price changes reserved. Dimensions and weights are approximate values. Liability for errors and mistakes excluded. Illustrations similar, some illustrations show special equipment. Preview images are representative of a product family and may therefore differ visually from the actual product you are looking for, e.g. in terms of number of steps or material.
